Ventilation

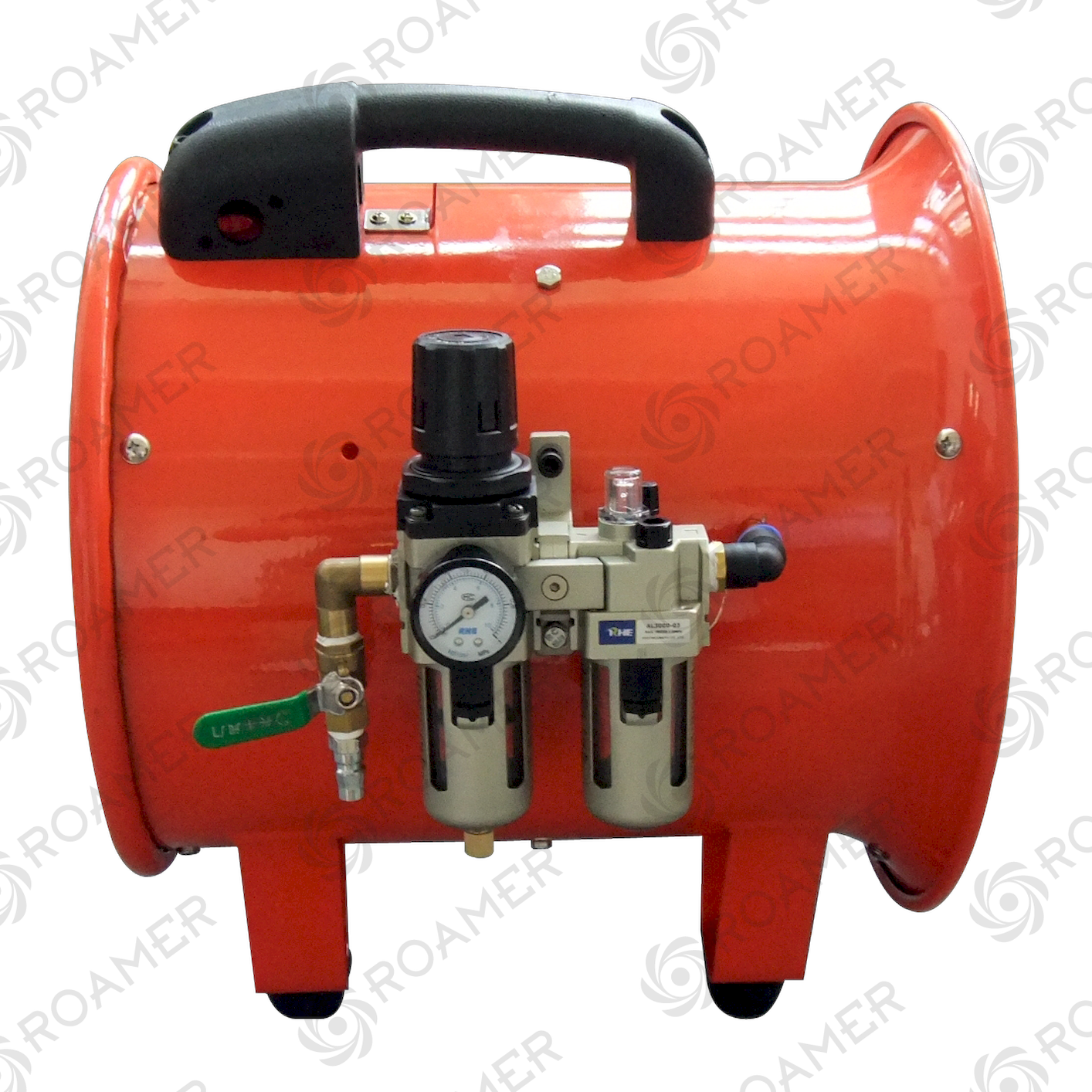

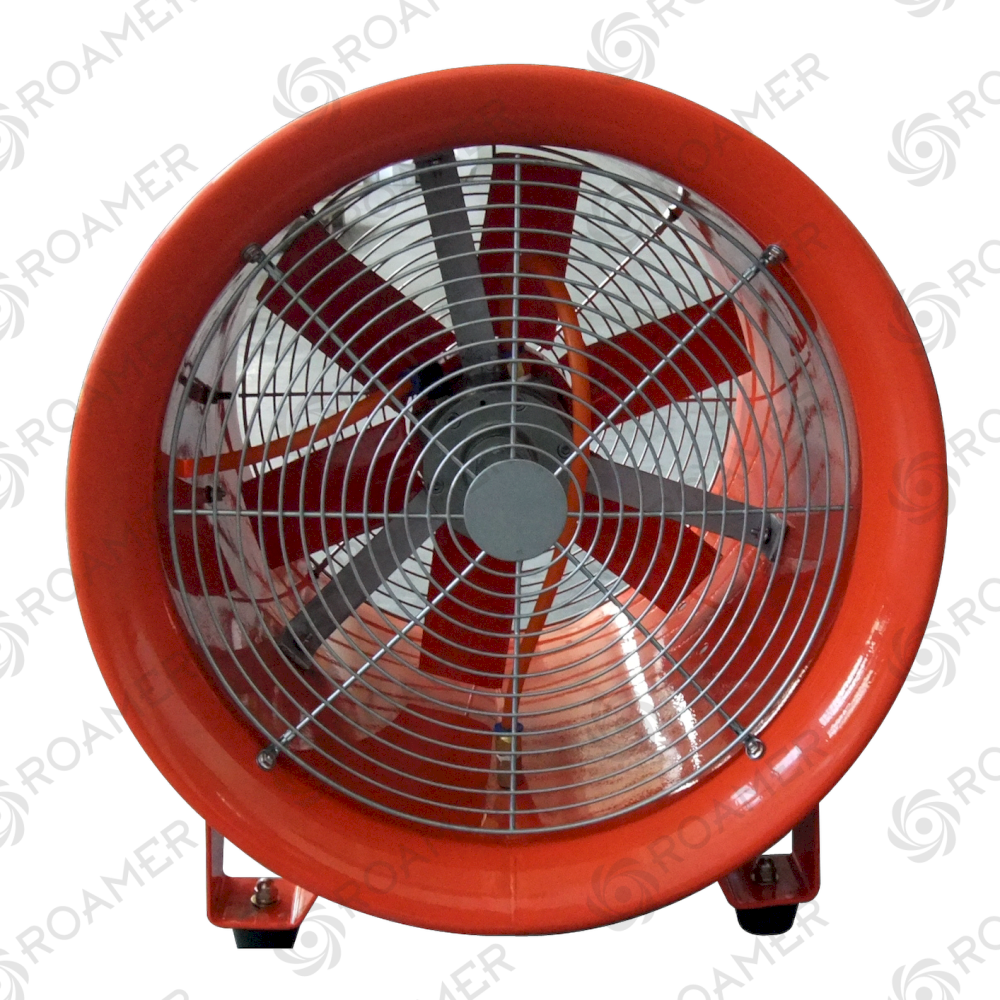

PNEUMATIC VENTILATION AXIAL FAN
FEATURES
Driven by compressed air and can be used with or without a duct in the hazardous areas such as cooling tanks or hatches.
Easy to transport with recessed handles.
Used as a blower or exhaust by simply reverse mounting.
Use for fresh air supply or fume exhaust.
SPECIFICATION
| Model | RF-12 | RF-16 | |
| Tube Diameter | mm | 305 | 405 |
| Air Consumption | m³/min. | 0.85 | 2.2 |
| Air Flow | m³/min. | 3,000 | 4,500 |
| Air Pressure | MPa | 0.6 | 0.6 |
| Speed | rpm | 3,000 | 3,000 |
| Code | 591425 | 591426 | |
| Uni-code | 0222056122 | 0222056162 |
