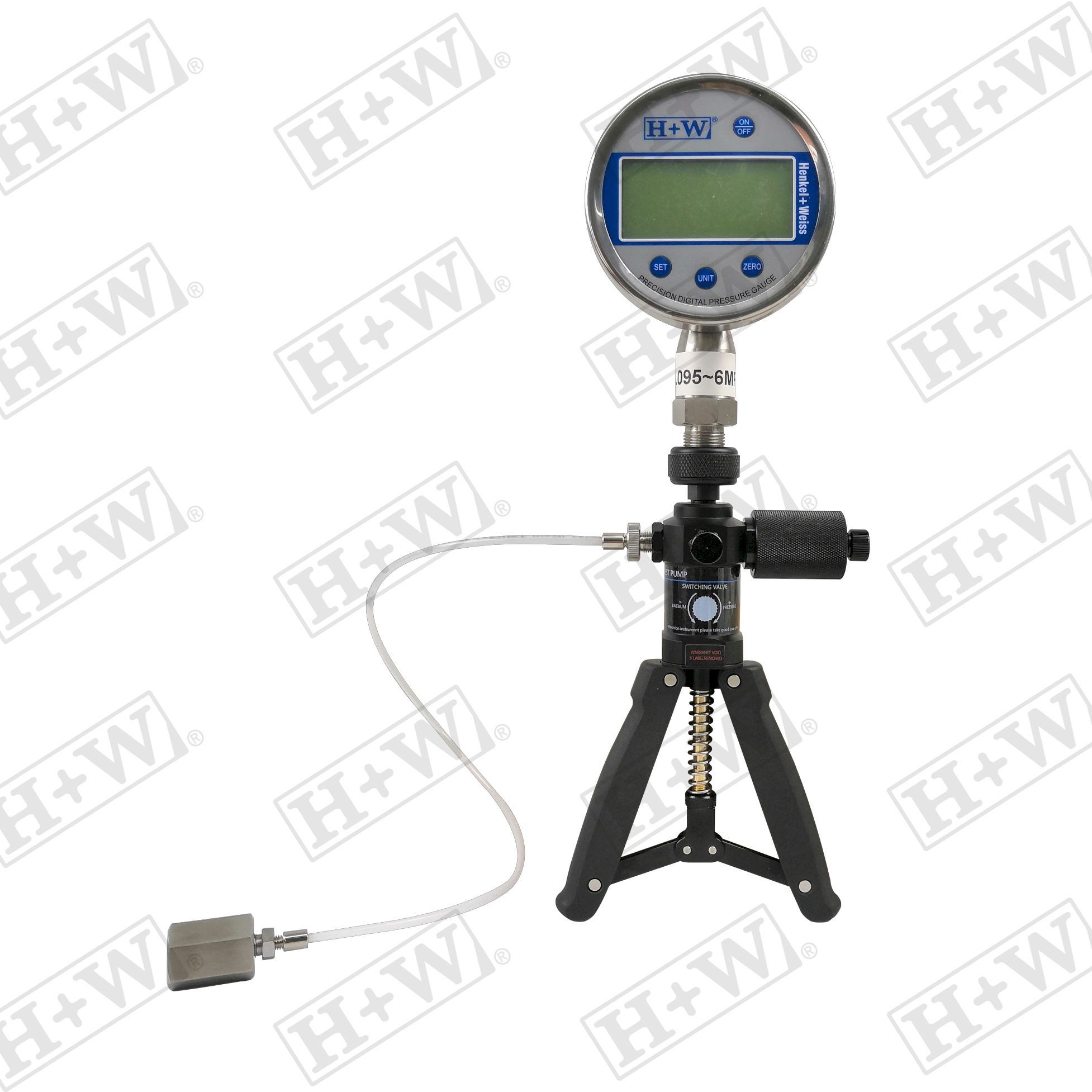

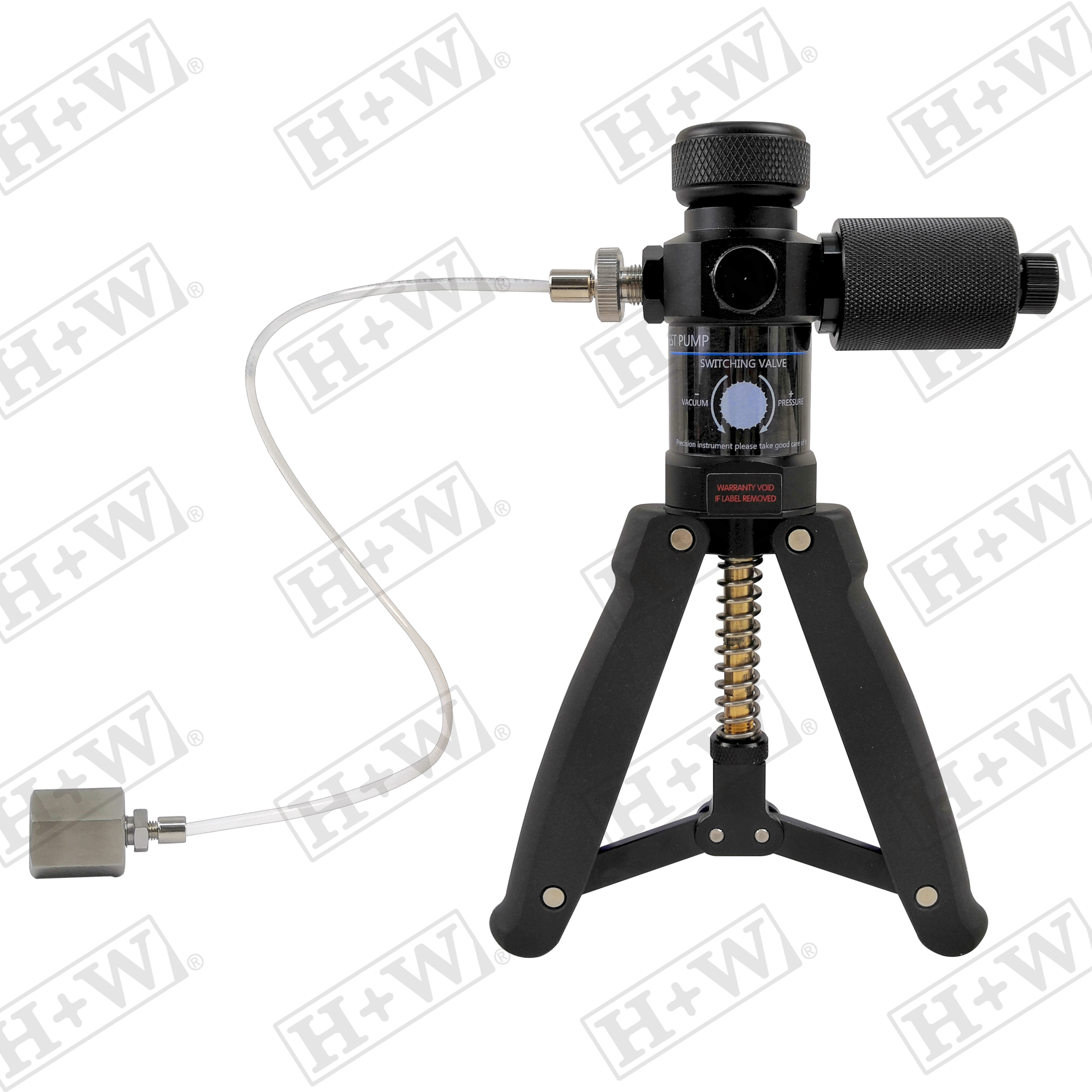

PNEUMATIC HAND TEST PUMP / PRESSURE CALIBRATOR
APPLICATION
To be used along with digital, standard or master, vacuum or pressure, gauges or indicator for checking & calibration of air operated sensors, manometers, gauges, indicators, controllers, transducers, transmitters, recorders & data loggers
FEATURES
Compact, lightweight & hand operated
Vernier with fine adjustment enables precise setting
Recommended strictly for air / pneumatic applications only
Generates pressure as well as vacuum (user select-able)
Through hand operated scissors action pump
SPECIFICATION
| Model | HW-40 | HW-60 | |
| Range | MPa | 0.095-4.0 | 0.095-6.0 |
| End Connection | in. | 1/4 BSPF (Reference & Test) | |
| Working Temperature | °C | -20~50 | |
| Weight | kg | 0.8 | |
| Dimensions | mm | 230x120x55 | |
| Code | 651631 | 651632 | |
| Uni-code | 940402149 | 940402049 | |
