Explosion-proof Equipment
NON-SPARK HAND CHAIN HOIST
FEATURES
The equipment is built to be marked Group II, Category 2, Temperature class T4, for use in the presence of gases and/or vapours of combustible liquids (G) of the IIC Group, with the aim that it can be located in ATEX zones such as ZONE 1. The equipment is therefore marked as follows
Ex II 2 G Ex h IIC T4 Gb.
This equipment is also built to be marked Group II, Category 2, Maximum Surface Temperature 120°C, for use in the presence
of combustible dust (D), with the aim that it can be located in ATEX zones classified ZONE21. The equipment will therefore be
marked as follows
Ex II 2 D Ex h IIIB T135ºC Db
Manufactured and marked according to ATEX Directive 2014/34/EU

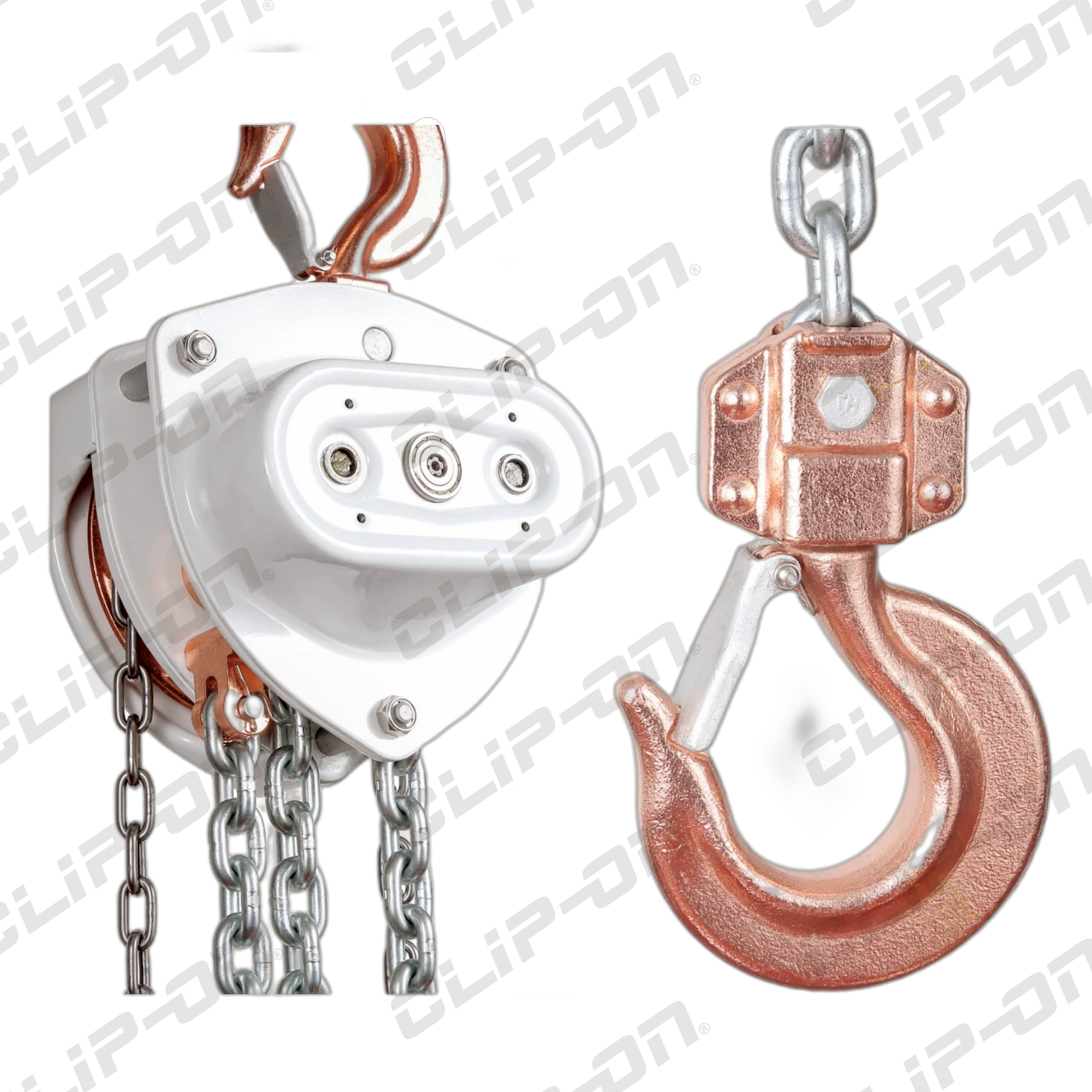

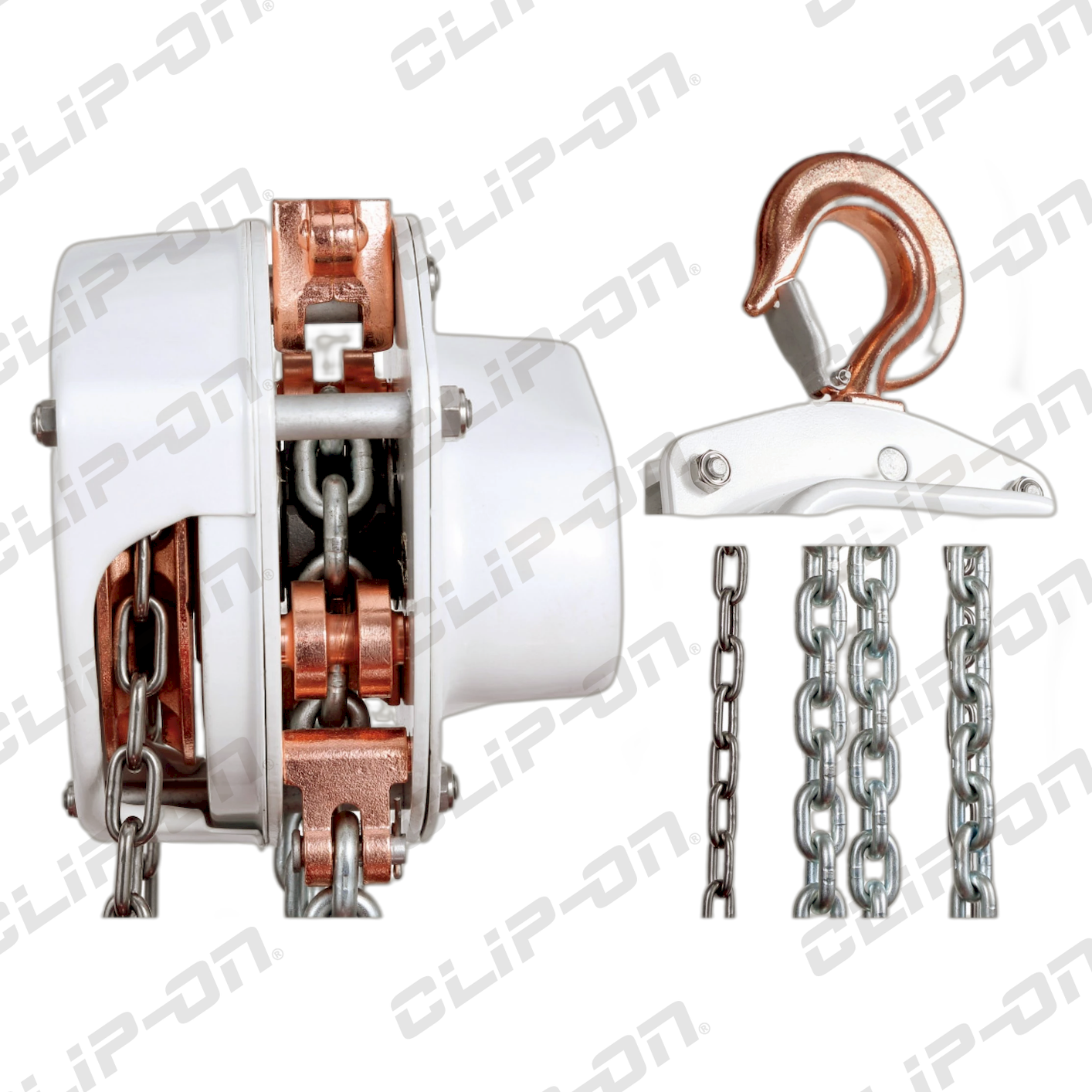

Suspension and load hook, guide rollers, rack wheel and copper-plated end of chain
High strength steel chain with Dacromet finish for increased durability against corrosion
Rustproof drive chain
SPECIFICATION
| Model | XF3-0.5 | XF3-1 | XF3-2 | XF3-3 | XF3-5 | XF3-10 | XF3-15 | XF3-20 | |
| Capactiy | t | 0.5 | 1 | 2 | 3 | 5 | 10 | 15 | 20 |
| Lifting Height | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Test Load | kN | 6.3 | 12.5 | 25 | 37.5 | 62.5 | 125 | 187.5 | 250 |
| Force | N | 240 | 250 | 335 | 372 | 380 | 385 | 385 | 390x2 |
| Nos. of Load Chain Falls | 1 | 1 | 1 | 1 | 2 | 4 | 6 | 8 | |
| Diameter of Load Chain | mm | 5x15 | 6x18 | 8x24 | 10x30 | 10x30 | 10x30 | 10x30 | 10x30 |
| Net Weight | kg | 9 | 12 | 20 | 32 | 43 | 81 | 140 | 180 |
| Code | 615021 | 615022 | 615023 | 615024 | 615025 | -- | -- | -- | |
| Uni-code | 0241481005 | 0241481010 | 0241481020 | 0241481040 | 0241481050 | 0241481100 | 0241481150 | 0241481200 |
